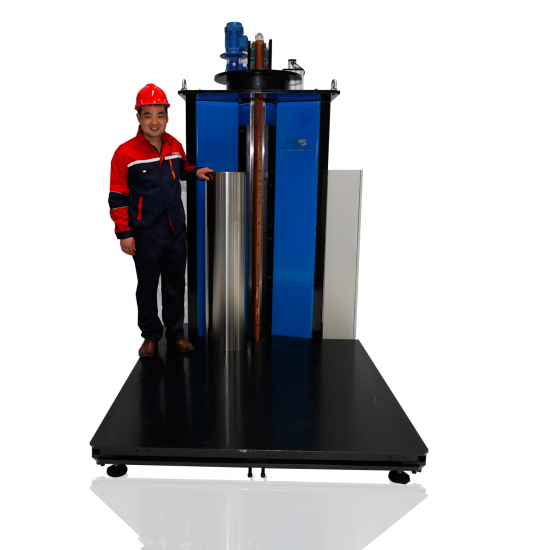

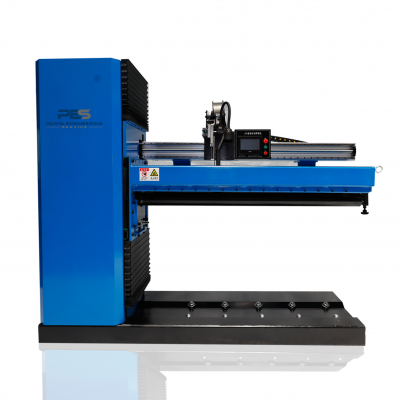

Lifting Type Vertical Seam Automatic Welding Machine

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling
effect, reduces the deformation of welding and post weld heat-affected zone of the
weld impact. Thus ensuring the work-piece welding is flat and smooth.
Welding process using a welding process of welded forming on both sides, ensuring
weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals.
Customers can choose the equipment, gas protection, water cooling, seam tracking.

Brand:
PES LASER

Inquiry now

Categories

New Products

Overview
Features
Specifications
RFQ

Application Scope:
The lift-type longitudinal seam welding machine is primarily suitable for butt welding of medium and thin-walled metal workpieces made of carbon steel, stainless steel, and other metals. The longitudinal seam welder can clamp and weld various structural forms of workpieces, including metal sheets, cylindrical workpieces, conical cylinders, truncated cones, as well as box structures and flat plate spliced joints.

Main Features:

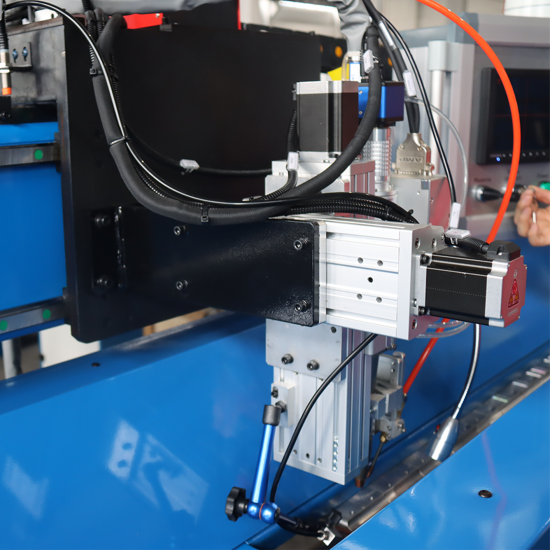

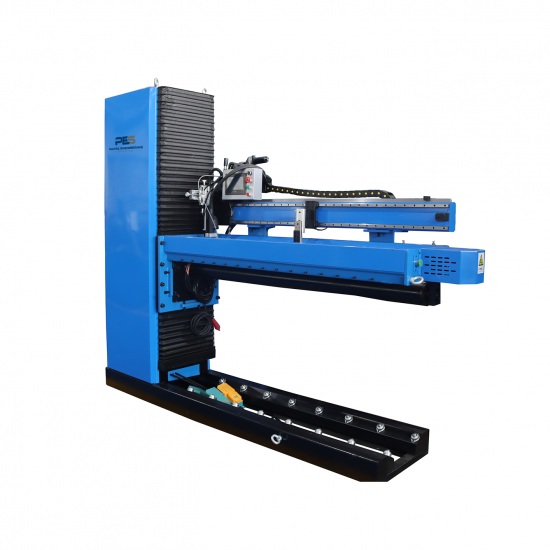

Ø Compared to traditional platen-type longitudinal seam automatic welding machines, this equipment features an added large cantilever and an electrically adjustable beam for vertical movement.

Ø The design principle of this equipment utilizes a piano-key clamping mechanism to provide balanced workpiece holding and cooling effects. During welding, excess heat is rapidly dissipated from the weld seam, reducing the risk of burn-through, warping, and deformation of the workpiece.

Ø This equipment enables single-sided welding with double-sided formation. It can weld a variety of metal materials, such as stainless steel, carbon steel, weldable aluminum alloys, and other metals.

Ø Equipped with an advanced control system and a user-friendly human-machine interface, it offers a high degree of automation, stable performance, and reliable operation.

Ø It can be integrated with welding power sources and torches such as TIG (tungsten inert gas welding), MIG/MAG (metal inert gas/metal active gas welding), PAW (plasma arc welding), and SAW (submerged arc welding) to form a complete automatic welding system.

Optional Accessories: TIG automatic wire feeding system, welding machine, cooling circulation water tank, etc.

Technique Parameters

Applicable diameter	250mm-650mm
Applicable length	400mm-1200mm
Material thickness	0.5mm-5mm
Material	mild steel,stainless steel,other metals
Control system	PES LASER
Welding speed	700mm/min
Welding torch moving range in left-right direction	100mm
Welding gun lifting range	100mm
Welding power source	PES LASER
Machine working voltage	380v 3phase 50hz

Q: What is the minimum diameter the machine can weld?
A: It is about 110mm inner diameter.
Q: Can we weld square work-piece?
A: Yes, please offer us your work-piece dimension.
Q: Is discontinuous welding available?
A: Yes, some simple settings.
Q: What parameters do we have to offer while sending inquiry?
A: Your work-piece length / diameter range and material.
