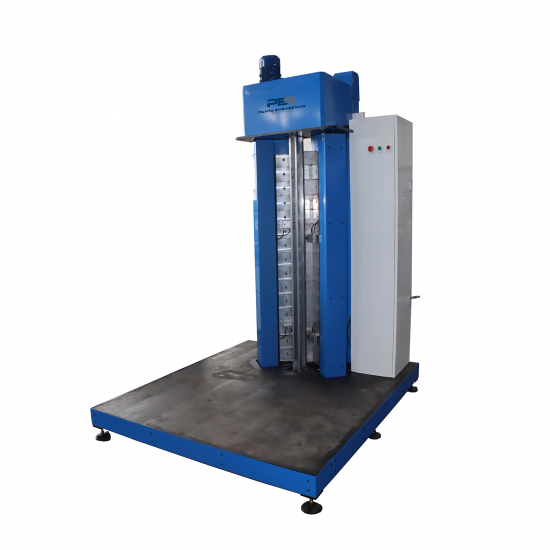

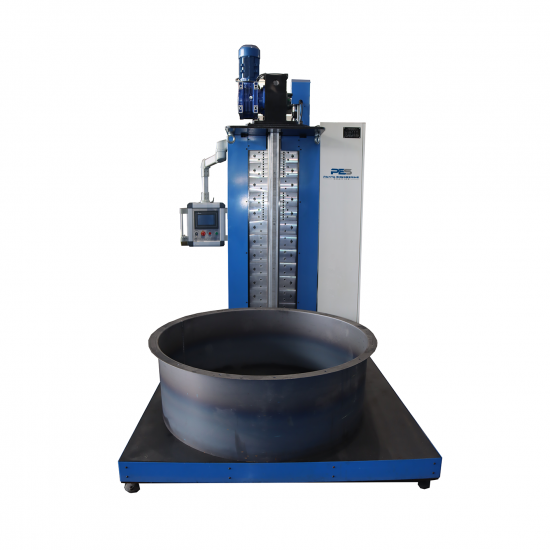

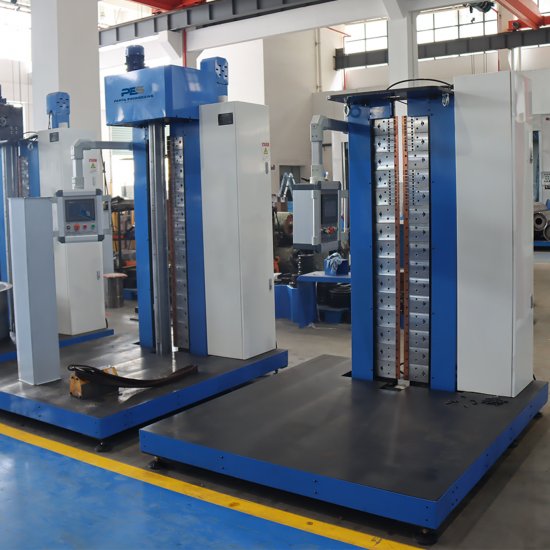

Platen-type Longitudinal Seam Automatic Welding Machine

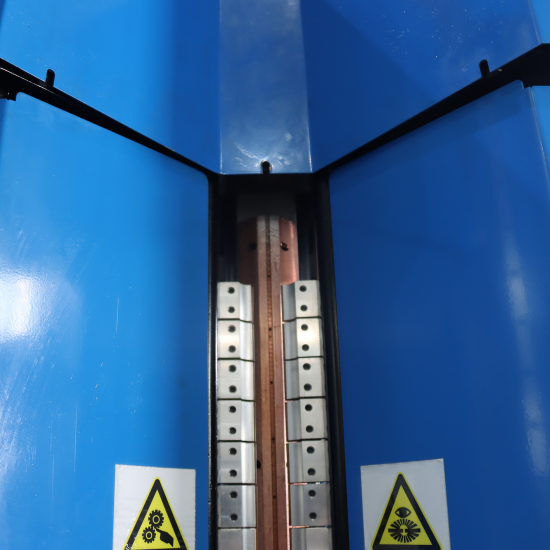

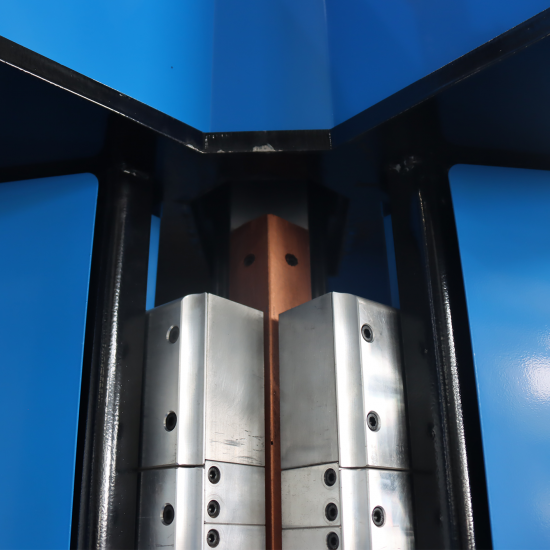

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.

Handheld laser welding machine can work by manual, also can install on robot to make machine working full-automatic and increase work efficiency.

High weld consistency,Suitable for mass production，high efficiency,Weld seam is smooth, no need to be polished,Sealed weld seam, high strength,Adjustable power,Wide range of applications

Each set of ground track welding workstation includes: arc welding robot, ground track walking mechanism, welding power supply, welding gun and water cooling system, vision system, intelligent welding system (standard configuration). The ground track length is 6 meters/9 meters, capable of X-axis displacement including ground track, gear rack, various linear guides, etc. The working range of the workstation in the Y-axis direction is 1.5 meters on each side, depending on the length of the track

This laser cleaning machine is suitable for metal surfaces. The laser beam is able to achieve the desired cleaning effect accurately and easily. Requiring no chemical cleaning solution or consumables. Non-contact cleaning, protecting component base against damage. With precise cleaning function, selective cleaning of precise position and precise dimension can be realized.

Utilizing self-developed intelligent welding and vision systems, the workstation employs visual photography, line marking, and laser scanning to precisely identify and calculate the position of weld seams. Based on the scanning results, the actual position of the weld seam is determined; the workstation automatically matches the welding process according to the size of the weld angle, including current, voltage, welding speed, and torch posture. Furthermore, based on welding trajectories and processes, program instructions recognizable by robots are created and transmitted to them for welding.

Seven axis gantry intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis gantry workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
