1000watt Mini size laser welding machine

Lightweight, portable and easy to operate

Brand:
PES LASER
Item NO.:
PT-W1000
Order(MOQ):
1
Payment:
30% DEPOSIT,70% BEFORE DELIVERY
Market Price:
$8500
price:
$8000/10
Product Origin:
CHINA
Shipping Port:
SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
Lead Time：
7days
Product weight:
150

Inquiry now

Categories

New Products

Overview
Features
Specifications
RFQ

PES-W1000 Laser Welding Capacity

Material	Thickness Single side weld	Thickness Double side weld	Thickness Wire weld
Stainless steel	3mm	6mm	2.5mm
Galvanized steel	3mm	6mm	2.5mm
Mild steel	3mm	6mm	2.5mm
Titanium alloy	3mm	6mm	2.5mm
Aluminum	2mm	4mm	1.8mm
Copper	1mm	2mm	0.8mm

	High efficiency of electro-optic conversion Resistance to high resistance Output fiber length can be customized Maintenance free operation Wide modulation frequency range ------MORE DETAILS
Line welding modes to meet different welding process Adjustable welding width with wobble function to meet wider seams The machine is equipped with auxiliary cutting function The machine is equipped with auxiliary weld cleaning function Adjustable laser power from 100watt to 1000watt for different thickness materials ------MORE DETAILS
	Built-in industry Chiller, No External Chiller Required Built-in water temperature alarm function for safe production Dual temperature and dual control ------MORE DETAILS
Automatic wire feeder for less than 1.6mm seam welding Adjustable speed Wire roll weight less than 15kg Wire diameter 0.8,1.0,1.2,1.6mm, Aluminum 1.2mm ------MORE DETAILS

Laser Beam	1000watt Raycus Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling	Built-in Industrial Chiller（Purified water or distilled water）
Cable length	Fiber cable lenght 10m, Operable cable length 8m

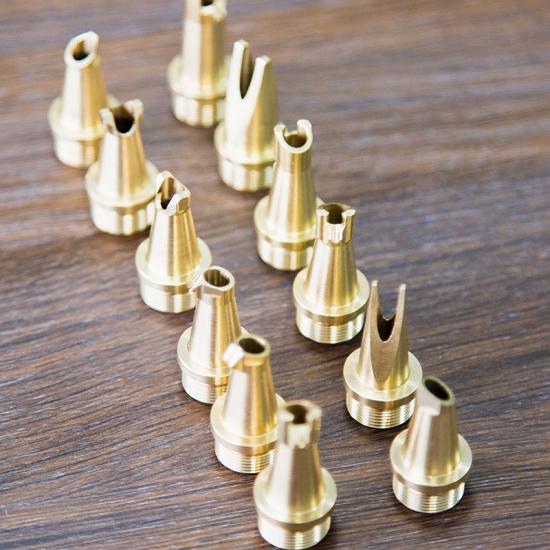

Weld Head	Handheld Wobble welding head with six weld mode,one cutting mode,changeable nozzle for different welding processing
Wobble width	Adjustable 0-5mm
Protection Gas	Argon/Nitrogen Pressure 5-10L/min
User Interface	For Laser Control:Power,Frequency,Duty cycle. Motor control:working mode,Frequency,Spot width Gas control:Advance,Delay,Proportion
Language	Chinese-English-Russian-Korean-Vietnamese
Safty	Class 4 laser equipment,Machine with CE,FDA certificate. The machine comes with error alarm function，emergency stop,chiller alarm.
Power Requirement	220±10% V AC, 50/60Hz CUSTOMIZATION
Operating Ambient Temperature(℃)	10~40℃
Humidity (%)	70
Dimensions(W×H×D)	884436662mm
Weight	150kg
