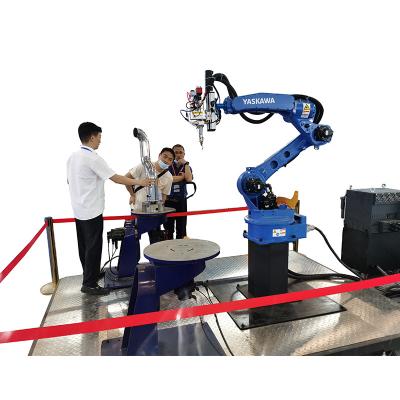

Industrial Robot Laser Welding System

Six-axis linkage can complete any in space. The perfect combination of mechanical arm and fiber laser welding machine can meet the needs of various automatic production. It is widely used in automatic welding of kitchenware, bathroom, door handles and precision parts and hardware.

Brand:
PES LASER
Item NO.:
PES-W1000
Payment:
30% DEPOSIT,70% BEFORE DELIVERY
Product Origin:
CHINA
Shipping Port:
SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
Lead Time：
30 WORKING DAYS

Inquiry now

Categories

New Products

Overview
Features
Specifications
RFQ

The dual-station robot laser welding adopts a dual-station working platform, intelligent operation of the robot, and equipped with wobble welding head. It collimates the parallel light through a collimator and focuses on the workpiece to perform welding. Equipped with a simple universal instrument, it can weld precision parts that are difficult to access to large molds, and implement flexible transmission fee contact welding, which has greater flexibility in operability

Suitable for large format space welding robots intelligent, flexible and reliable, six-axis can be any spatial welding, welding is not limited to a plane.
Customers can be customized fixture according to production needs.
It can achieve duplex or station welding operation, saving product installation jig time and greatly improve production efficiency.
With the first domestic wobble welding head, its unique wedge vibration method makes the welding seam wider, making laser welding more widely used, and for larger workpieces.
Workpieces with wider weld seams can achieve high-efficiency and precise laser welding. And the weld quality is better than ordinary welding head. Weld surface is more smooth, beautiful,Better weld quality.
High repeatability, correct welding can be repeated, non-consumable, flexible manufacturing, low operating cost.
Some places can replace manual operation for some difficult welding space.

Model	PES-W2000	PES-W3000	PES-W6000
Laser power	2000W	3000W	6000W
Emission Wavelength(nm)	1080±5
Modulation Frequency(Hz)	50~50,000
Total power	<6.5kw	<10kw	<18kw
single side Penetration	3mm steel	5mm steel	8mm steel
single side Penetration	2mm aluminum	3mm aluminum	5mm aluminum
Power Supply	380V±10%/3P+PE
Operation Mode	CW/Modulated
cooling method	Water cooling
Core Fiber(μm)	50/100um
Delivery Cable Length(m)	10m
Robot arm brand	YASKAWA
Robot Working range	1400mm
