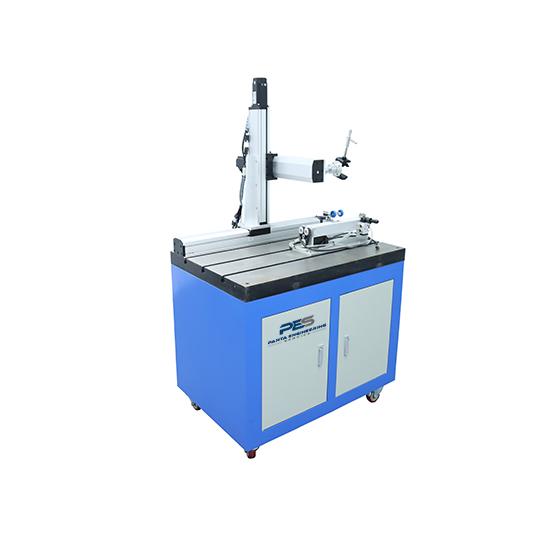

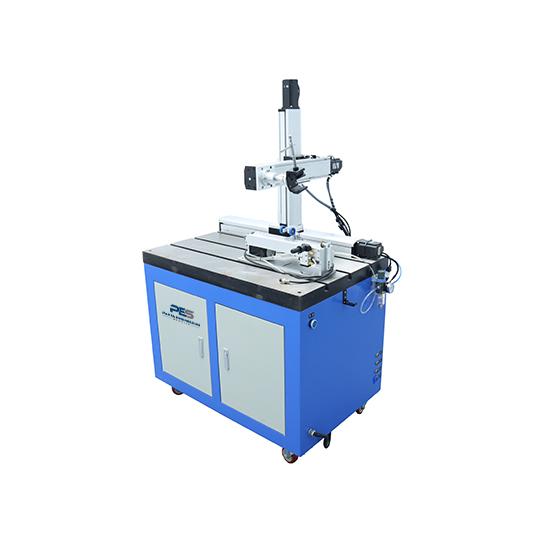

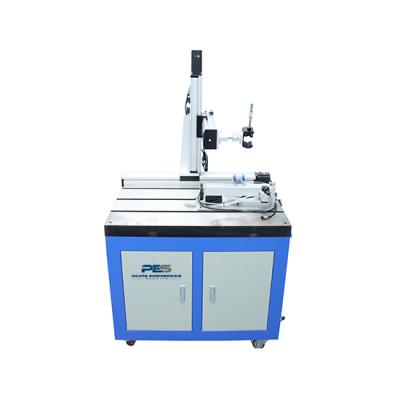

Small Size Welding Platform for Enhanced Industrial Automation

The welding platform is a device specifically designed for welding the edges and corners of workpieces. This equipment has the advantages of high work efficiency, high degree of automation, good weld consistency, simple operation, and low requirements for weld quality. Using this equipment to replace manual welding of workpieces greatly automates the welding process. It significantly improves the efficiency and quality of traditional manual welding, greatly reduces the labor intensity of workers, significantly lowers the skill and physical requirements for welders, and reduces welding labor costs. The auxiliary welding platform developed and produced by our company can be equipped with various welding equipment (such as laser welding machines, TIG welding machines, and CO2 gas shielded welding machines) for flexible replacement.

Each set of ground track welding workstation includes: arc welding robot, ground track walking mechanism, welding power supply, welding gun and water cooling system, vision system, intelligent welding system (standard configuration). The ground track length is 6 meters/9 meters, capable of X-axis displacement including ground track, gear rack, various linear guides, etc. The working range of the workstation in the Y-axis direction is 1.5 meters on each side, depending on the length of the track

Air- cooled laser cleaning Machine is a new generation of surface cleaning of High-tech products. Easy to install, manipulate and automate. Simple operation, can remove the surface of the object resin, oil, stains, dirt, embroidered turbid, coating, coating, paint.

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.

Assembly and Welding Joint Intelligent Work Island is mainly used in the welding production of steel structure prefabricated buildings, steel structure roof beams, H-shaped steel beams and columns, and other types of intelligent production lines. The compatibility of the welding joint work island with the ground rail and the adaptability of the welding joint workstation. The system deeply integrates assembly and welding processes, and interacts with PLC signals after importing models to determine incoming material data. By scanning the base material and component materials through a visual system, accurate material retrieval and placement positions are obtained. The weld seam type and data are obtained through a model, and then integrated with a fabric welding expert library to automatically generate welding programs and execute welding.

This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling effect, reduces the deformation of welding and post weld heat-affected zone of the weld impact. Thus ensuring the work-piece welding is flat and smooth. Welding process using a welding process of welded forming on both sides, ensuring weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals. Customers can choose the equipment, gas protection, water cooling, seam tracking.

Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.

Eight Axis Cantilever Intelligent Workstation is mainly used for the welding production of bridge and ship plate unit structures and other types of workpieces. The eight axis cantilever workstation is compatible with the adaptability of ground rails and seven axis cantilever workstations, improving the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding
