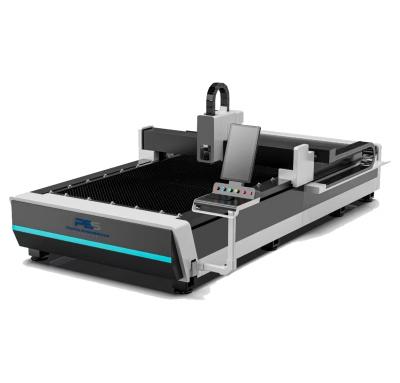

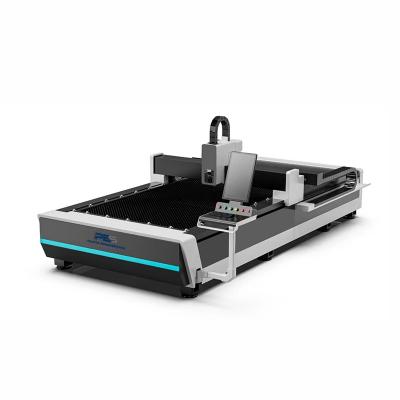

3000W Fiber laser cutting machine

Laser cutting machine is an advanced tool that uses high-power laser beam to cut various materials. Its working principle is to focus the high-energy laser beam on the surface of the material, thereby locally heating and melting the material, and using auxiliary gas (such as oxygen, nitrogen or compressed air) to blow away the molten material to achieve cutting.


Brand: PES LASER
Item NO.: PES-T3000
Order(MOQ): 1
Payment: 30% DEPOSIT,70% BEFORE DELIVERY
Product Origin: CHINA
Shipping Port: SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
Lead Time 35 day
Product Weight: 3000KG
  • Brand:

    PES LASER
  • Overview
  • Features
  • Specifications
  • RFQ

Advantages of Fiber Laser Cutting Machine

 1) Excellent beam quality:  Smaller focus diameter and high work efficiency, high quality.

 2) High cutting speed: Cutting speed is more than 20m/min

 3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

 4)  High efficiency for photoelectric conversion:  Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency

 5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;

 6) Easy operations: fiber line transmission, no adjustment of optical path;

 7) Super flexible optical effects:  Compact design, easy to flexible manufacturing requirements.

Professionl Fiber Laser Cutting Head

Automatic laser cutting head,

fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly

sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be

as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption



Raycus Laser Source

Raycus/Max/IPG, multiple choice

Different brands, different laser power are available. The higher power, the thicker cutting thickness.

Servo Motor

Delta servo motor

servo motor with fast dynamic response provides speed and performance stability.

The maximum idle speed of the machine can reach up to 100 m/min



Dedicated Cutting System

Bochu 2000E/4000E,can remotely control computers and machines, adjust parameters and solve problems.




Hanli Water Chiller

With excellent quality and leading research retrength, hanli has become a leading enterprise in the China industrial refrigeration industry.



No.

Description

Specifications

1

Laser Parameters

Max Power

3000W

2

Laser Wavelength

1080±5

3

Laser Frequency

50Khz

4

Laser Connector

QBH

5

Cutting head

Focusing Method

Auto-Focus

6

Collimation Distance

F100*F150

7

Interface Type

QBH

8

Suitable Laser Power

3000W

9

Equipment Parameters

Processing Area

2020*4050mm

10

Workbench Load Capacity

3000KG

11

Maximum Operating Speed

100m/min

12

Exchange Table Time

NO

13

Maximum Cutting Thickness

≦20mm(cs ≦10mm(ss

14

Minimum Line Width

0.1mm

15

Repeat Positioning Accuracy

± 0.05mm

16

Supported File Formats

Compatible with CAD for drawing and direct drawing on software, Supports AI, BMP, PLT, DXF, DST, etc

17

Assist Gas

oxygen, nitrogen, and air

18

Operating Temperature

0-40°

19

Operating Humidity

30-85%

20

Total Power

46KW

21

Power Requirements

AC323V~AC437V、50/60Hz

22

Warranty Period

Laser source 2year,other parts 1 year

Q: What's your MOQ and delivery?
A: Our MOQ is 1 set machine.

Q: How about the lead time?
A: It may need 35-50 days for cutting machines.

Q: This is the first time I have used this machine, is it easy to operate?
A: Don't worry, we will provide customers with videos of using guidance and English user manuals.
If you still have doubts, our customer service team can connect you with our engineer who is available 24/7.
You can reach out to them through WeChat, WhatsApp, Skype, mobile phone, or email to discuss and resolve any issues you may have on time.


Q: Do you provide after-sales service and warranty?
A: Certainly, We ensure a prompt online response within two hours to provide warranty services.
We also provide customers with comprehensive manuals for reference.
If any issues persist, you can return the faulty components to us for repair.
