Handheld  laser cleaning machine

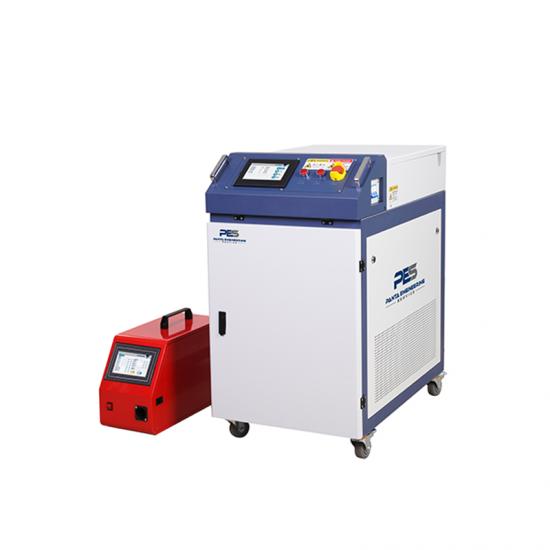

Handheld Continuous Wave Heavy-duty Laser Cleaning Machine

This type of laser cleaing machine main for cleaning rust,Manchine chose continuous wave fiber laser,it's not suitable for high-precision products.


  • Brand:

    PES LASER
  • Item NO.:

    PES-C1500/2000/3000
  • Payment:

    30% DEPOSIT,70% BEFORE DELIVERY
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZATION
  • Shipping Port:

    SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
  • Lead Time:

    10-15 day
Overview

  • High-efficiency,good effect
         Automation.Stable cleaning efficiency.No chemical cleaning fluidrequired.
  • Real-time monitor cleaning quality
         Real-time monitoring of cleaning effect.Precise cleaning, with accurate location, precise size and selective cleaning
  • Without damage to parts matrix.
         Accurate positioning without damage to parts matrix. Laser cleaning machine can clean the surface of very sensitive materials, such as aluminum, carbon, stainless steel,Carbon fiber reinforced polymer or coating material without damaging the material.
  • Eco and Environmental protection

        High cleaning cleanliness.Precise cleaning, with accurate location. effectively clean up micron-level pollution particles. safe and environmental protection,no consumables.



Features



  • Handheld cleaning headSimple handheld structure,portable.Ergonomic design.
  • Easy to operate.Detachable flexible front end,achieve auto focus.
  • 0.8kg,Lightweight without fatigue


  • Control system Simple clear and concise interface.Easy to operate.
  • Multiple parameters setting available.Easy to achieve the control for laser source and lens.



  • Built-in industry Chiller, No External Chiller Required
  • Built-in Laser source,Integrated design, easy to move



Specifications
Laser Beam 1500/2000/3000watt Raycus Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling
Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.8kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas   Pressure 5-10L/min
User Interface
For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty

Class 4 laser equipment,Machine with CE,FDA certificate.

The machine comes with error alarm function,emergency stop,chiller alarm.

Power Requirement 220/380±10% V AC, 50/60Hz   CUSTOMIZATION
Operating Ambient Temperature(℃)  10~40℃
Humidity (%) 70
Dimensions(W×H×D) 700*1150*1200mm
Weight 250kg
