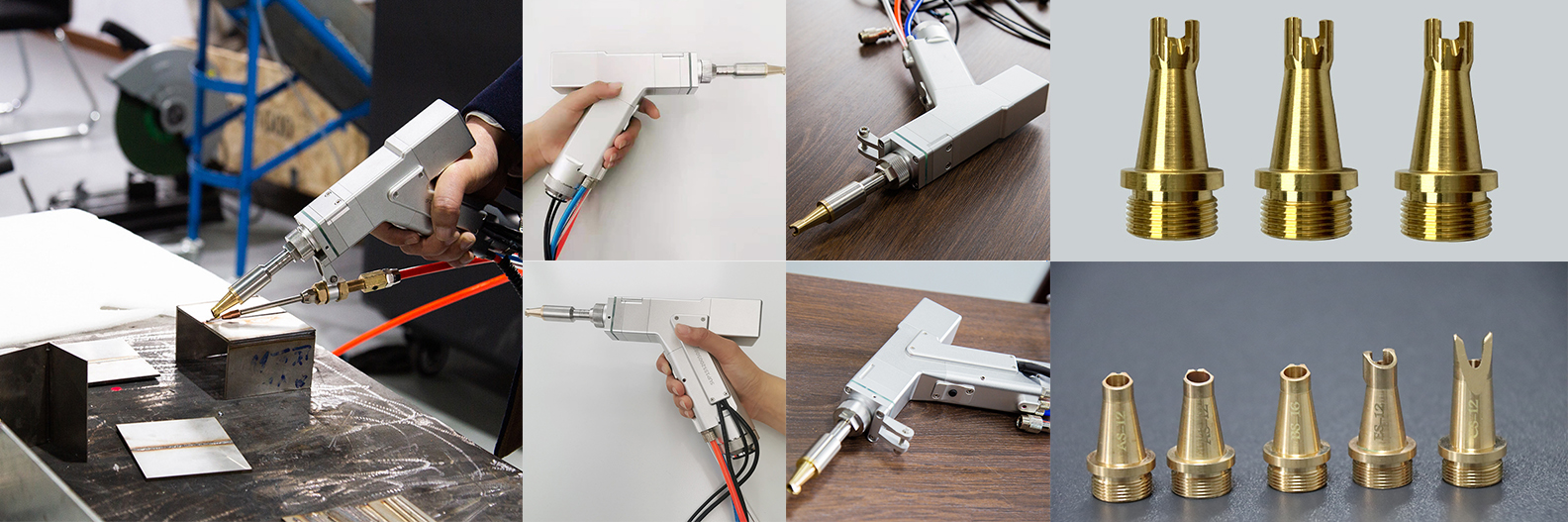

PES-20S Handheld Fiber lasder Wobble Welding Head
New Products

PES-20S Handheld Fiber lasder Wobble Welding Head

May 21, 2021

  • Basic features: the self-developed control system with multiple safety alarms is smaller in size, flexible in operation and easy to get started.
  • More stable: since all parameters are visible, the whole machine state can be monitored in real time, problems can be avoided in advance and also can be checked and solved more conveniently, ensuring the stable work of the plumb joint.
  • Technology: since all parameters are visible, the welding quality is perfect, the deformation is small, and the penetration is high.
  • Stable parameters and high repeatability: with a defined air pressure of nozzle and lens state, the technology parameters must be repeatable as long as the laser power is stable. This greatly improves efficiency and also reduces

Power Supplier 220V±10V   AC   50/60HZ
Working environment Handle with care
Operating Ambient Temperature(℃)
10-40℃
Humidity (%)
<70
Cooling Method Water Cooling
Wavelength 1064nm(±10nm)
Max Power ≤2000W
Collimation D20*5/F60
Focus D20*4.5/F150
Reflection 30*14*T2
Specifications of protective glasses 18*2
Max of Protection air pressure 10 Bar
Vertical adjustment Range of Focus ±10mm
Adjustable Welding Spot Line 0-5mm
Weight 0.8kg
